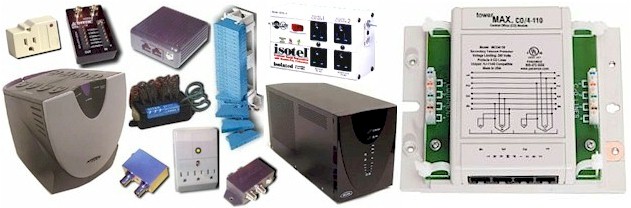

You should have surge protection on every phone line, and either a surge protector or a UPS (un-interruptable power supply) with surge protection on the power line.

Modern phone systems are generally very reliable, but they can be damaged or destroyed by power surges coming from the electric outlet or a phone line.

Phone system warranties usually don't cover damage from surges, and the loss of of a phone system for even one day can be devastating for a business and extremely inconvenient for a family, so USE PROTECTION.

  • Don't rely on protectors installed by your phone company, and don't think you're fully protected if your phone system is connected to a UPS (un-interruptible power supply).
  • UPSes keep your equipment running during a power failure, and protect the equipment from power line surges, but usually don't protect phone circuits. We find much more damage coming from phone lines than from power lines.
  • Protectors should be used on BOTH ENDS of any circuit going between two buildings.

UPS Selection Chart for Panasonic phone systems & voice processors

  • To use one UPS for both a phone system and a voice processor, add the VA numbers together
  • For a twin-cabinet D1232 system, double the VA figure for one cabinet
  • Run time figures are approximate. Systems that have to ring a lot of single-line phones will require more power than systems with most or all "proprietary" system phones.
      Approx.

RUN TIME for UPS #

Pana. # Watts Amps VA UPS-625   UPS-1400
KX-TA624 125 1.2 175 approx. 1.1hr. approx. 2.5hrs.
KX-TD308 65 0.7 90 approx. 1.8hr. approx. 4 hr.
KX-TD816 100 1.0 130 approx. 1.3hr. approx. 3hr.
KX-TD1232 140 2.0 220 approx. 0.9hr. approx. 2 hr.
KX-TVS50,80,110 10 0.17 14  approx. 6.25hrs approx. 14hrs
KX-TVS75 20 0.3 30 approx. 3.1 hrs. approx. 7 hrs.
KX-TVS100 38 0.4 50 approx. 2.2 hrs. approx. 5 hrs
KX-TVS200 65 0.7 90 approx. 1.8 hrs. approx. 4 hrs.
Price with FREE SHIPPING in the US: $220 $690
