  • English/Spanish bilingual

  • More recording time

  • More ports

  • More features

  • More for your money.

This page has  information on a new generation of Panasonic voice processors. There are four new models.

We use "voice processing system," voice processor," and "VPS" to mean the same thing.

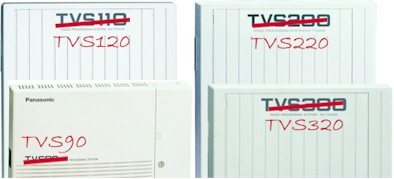

KX-TVS90

The new KX-TVS90 replaces the KX-TVS80. The KX-TVS90 is identical to the KX-TVS80 (2 Ports & 6 Hours total storage), but has Spanish prompts in addition to English, and costs much less than the 80.


KX-TVS120

The new KX-TVS120 replaces the KX-TVS110, and has these important improvements:

  • The KX-TVS120 is shipped with a KX-TVS204 4 port module pre-installed, (2 more ports than the KX-TVS110), at no increase in price.

  • The KX-TVS120 offers 6-ports maximum, 2 more ports than the KX-TVS110.

  • The KX-TVS120 has 32 hours of storage, almost DOUBLE the 18 hour capacity of the KX-TVS110.

  • The KX-TVS120 has Spanish prompts in addition to English.


KX-TVS220

The new KX-TVS220 replaces the KX-TVS200, and has these important improvements:

  • The KX-TVS220 is shipped with a KX-TVS204 4 port module pre-installed.

  • The KX-TVS220 has 64 hours of storage, DOUBLE the capacity of the KX-TVS200.

  • The KX-TVS220 has Spanish prompts in addition to English.


KX-TVS320

The new KX-TVS320 replaces the KX-TVS320, and has these important improvements:

  • The KX-TVS320 is shipped with a KX-TVS204 4 port module pre-installed.

  • The KX-TVS320 has 128 hours of storage, DOUBLE the capacity of the KX-TVS300.

  • The KX-TVS320 has Spanish prompts in addition to English.


First comments: GREAT SYSTEMS. Call handling is super-fast on hard-drive TVS120; it seemed like chip memory.

 >> Additional Features For All Models <<

All of the new enhanced voice processors have the features described below. Some features do not work with some phone systems. Please see the Feature Compatibility Chart lower down on this page.
  • Unlimited Message Length: Lets you record two-way conversations of unlimited length into your mailbox or another person's mailbox (Two-Way Record or Two- Way Transfer). The maximum recording time for other messages is automatically set to six minutes. This feature is activated via class of service, by assigning "0:Unlimited" in the settings (class of service).
  • Remote Selection of Company Greeting: You can record five different company greetings and change the active greeting remotely, without re-recording. This is a real benefit in situations where you are unable go into the office (in bad weather, for example) and the company greeting needs to be changed to notify people that the business is closed.
  • Delete Message Confirmation: The voice processor can request confirmation from the mailbox owner before erasing a message. This feature can now be enabled or disabled.
  • Clock Synchronization: The internal clock in the voice processor system is synchronized with the clock in the digital phone system (with DPITS integration). The VPS clock will be changed automatically any time the phone system clock is changed or when DPITS integration is established.
  • Remote Call Forwarding Set: From a remote location, you can set your phone to forward various types of calls to a desired extension, or to an outside telephone. You can set all six call forwarding modes remotely: Forward All Calls, Forward Busy Calls, Forward No Answer Calls, Forward Busy or No Answer Calls, Forward to a CO (outside telephone), and Cancel Call Forward. Call forward to a CO can be activated or deactivated on each extension. This feature is very useful if you want your calls to reach you when you are out of the office. You can move from one location to another and change your forwarding to follow you.
  • Trunk Service: each trunk (CO line) group can be assigned to one of four incoming call service types: Voice Mail Service, Automated Attendant Service, Interview Service and Custom Service.
  • Day/Night/Lunch/Break Time Service: this is a timer function that initiates the appropriate call handling method depending on the time of day: Day, Night, Lunch, and Break Service periods.



Upgrading

  •  Older models cannot be upgraded to the newer models' features.




Voice Processing Configuration & Compatibility Charts

IMPORTANT: feature compatibility will vary depending on: (1) Voice Processor model, Voice Processor version (age), (2) Phone System model, (3) Phone System version (age) (4) Type of integration (DPITS, APITS or In Band)

Please refer to the following charts to insure that your Voice Processor and Phone System provide the features that you need.


Type of integration supported by Voice Processors

Integration

KX-TVS50

KX-TVS90

KX-TVS120

KX-TVS220

KX-TVS320

DPITS

Yes

Yes

Yes

Yes

Yes

APITS

Yes

Yes

No

No

No

In Band

Yes

Yes

Yes

Yes

Yes



Type of integration supported by phone systems


System

KX-TVS50

KX-TVS90

KX-TVS120

KX-TVS220

KX-TVS320

KX-TA624

APITS, In Band

APITS, In Band

In Band

In Band

In Band

KX-TA1232

DPITS, In Band

DPITS, In Band

DPITS, In Band

DPITS, In Band

DPITS, In Band

KX-TD308

DPITS, In Band

DPITS, In Band

DPITS, In Band

DPITS, In Band

DPITS, In Band

KX-TD816

DPITS, In Band

DPITS, In Band

DPITS, In Band

DPITS, In Band

DPITS, In Band

KX-TD1232

DPITS, In Band

DPITS, In Band

DPITS, In Band

DPITS, In Band

DPITS, In Band











Voice Processor port capacity chart (DPITS/APITS)





Additional Additional

Voice Processor

Ports

KX-TVS102 *KX-TVS204
KX-TVS50 2

KX-TVS90

2



KX-TVS120

4



6

1

KX-TVS220

4

  1



6

1 1



8

  2



10

1 2



12

  3

KX-TVS320

4

  1



6

1



8

  2



10

1 2



12

  3



14

1 3



16

  4



18

1 4



20

  5



22

1 5



24

  6



24

  6

*KX-TVS120, 220 & 320 VPSs are equipped with 1 KX-TVS204 card



New Feature Compatibility Chart

Features

VPS

Type of
 Integration

KX-TA624-3

KX-TA1232

KX-TD308-3

KX-TD816-6

KX-TD123-6

Remote Call
Forward Set

TVS50-2,
TVS120,
TVS220,
TVS320

DPITS

No

Yes

No

Yes

Yes

Day Night
Lunch Mode

TVS50-2,
TVS120,
TVS220,
TVS320

APITS
or
DPITS

Yes

Yes

No

Yes

Yes

Clock


TVS50-2,
TVS120,
TVS220,
TVS320

DPITS

No

Yes

No

Yes

Yes

Remote Change
of Company
Greeting

TVS50-2,
TVS120,
TVS220,
TVS320

APITS
or
DPITS


No

Yes

No

Yes

Yes

Unlimited
Message
Length

TVS120,
TVS220,
TVS320

APITS
or
DPITS

No

Yes

No

Yes

Yes

Trunk Service

TVS50-2,
TVS120,
TVS220,
TVS320

APITS
or
DPITS

Yes

Yes

Yes

Yes

Yes

Delete Message
Confirmation

TVS50-2,
TVS120,
TVS220,
TVS320

APITS
or
DPITS

Yes

Yes

Yes

Yes

Yes
